Epoch | 4k Neutron LP

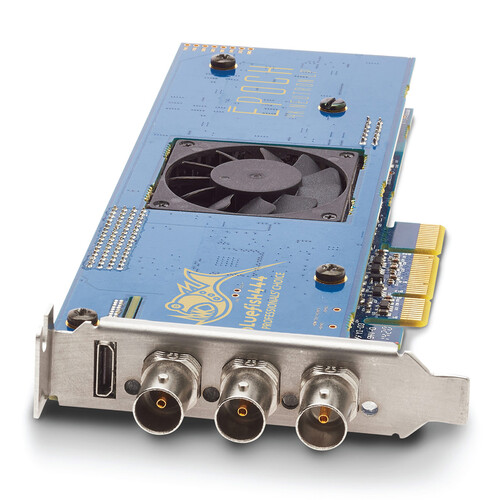

Epoch | Neutron 4K LP I/O Card: 4K/2K/HD/SD SDI/HDMI I/O, 3 Simultaneous Channels, 4K up to 30 FPS, 4K HDMI, Half Length Low Profile PCIe, Genlock BNC. Bundled with IngeSTore multi-channel HD/SD ingest software for Windows, and Symmetry DI and 3D acquisition review and playout software for Windows.
*Pricing for Authorized Resellers only, contact VDS for additional details.
Specifications
‰Û¢ Low Profile Form Factor
‰Û¢ Full Height Shield & Low Profile Shield options
‰Û¢ 2 inputs, or, 2 outputs, or 1 input & output
‰Û¢ 8/10/12 bit SDI I/O
‰Û¢ 12 bit processing of individual 8/10/12 bit frames
‰Û¢ HDMI Preview of 4K/2K/HD SDI output
‰Û¢ 3G SDI Level A & B
‰Û¢ 16 Channels of Embedded Audio I/O
‰Û¢ 8 Channels of AES/EBU or SPDIF I/O
‰Û¢ 2 channels of analog audio output
‰Û¢ RS422 Control
‰Û¢ OS X Thunderbolt compatibility via 3rd party expansion chassis
‰Û¢ Windows 7/8 Thunderbolt compatibility via 3rdparty expansion chassis
‰Û¢ Avid Qualified
‰Û¢ Adobe Premiere Qualified
